PhastNode Class Reference

Graphical representation of Phast objects (e.g. PaDetector, PaTrack, ...) as OpenSceneGraph node. More...

#include <PhastNode.h>

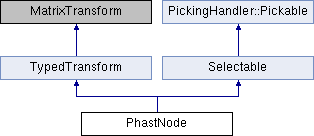

Inheritance diagram for PhastNode:

Classes
struct	Magnet
struct	Target

Public Types
enum	Type {   GROUP =1, DETECTOR =2, CALORIMETER =4, RICH =8,   TRACK =16, MAGNET =32, TARGET =64, CLUSTER =128 }
Public Types inherited from TypedTransform
enum	ReservedTypes { UNSPECIFIED =-1, GROUP =1 }
typedef TypedTransform	T

Public Member Functions
	PhastNode ()
	Constructor for a GROUP node. More...
	PhastNode (const PaDetect &det, osg::Vec4 color=osg::Vec4(1.f, 1.f, 1.f, 1.f))
	Constructor for a DETECTOR node. More...
	PhastNode (const PaCalorimeter &cal, osg::Vec4 color=osg::Vec4(1.f, 1.f, 1.f, 1.f))
	Constructor for a CALORIMETER node. More...
	PhastNode (const PaRich &rich, osg::Vec4 color=osg::Vec4(1.f, 1.f, 1.f, 1.f))
	Constructor for a RICH node. More...
	PhastNode (const PaTrack &track, osg::Vec4 color=osg::Vec4(1.f, 1.f, 1.f, 1.f))
	Constructor for a TRACK node. More...
	PhastNode (const PaCaloClus &cluster)
	Constructor for a CLUSTER node, a special node showing the energy deposit in a Calorimeter Cluster. More...
std::string	getName () const
	Return name (matches Phast object's name if node corresponds to a Phast object) More...
int	getUID () const
	Return unique PhastNode index (e.g. usefull for mapping a PhastNode to a QTreeWidget item) More...
void	setColor (osg::Vec3 color)
	Change color of this node and all its children. More...
void	setAlpha (float alpha)
	Change alpha value of this node and all its children. More...
void	setVisible (bool visible)
	Change visibility of this node and its subtree. More...
void	highlight (bool highlighted)
	PhastNode (const Magnet &magnet, osg::Vec4 color=osg::Vec4(1.f, 1.f, 1.f, 1.f))
	PhastNode (const Target &target, osg::Vec4 color=osg::Vec4(1.f, 1.f, 1.f, 1.f))
bool	isSetupEntity ()
bool	isEventEntity ()
bool	isGroup ()
bool	isDetector ()
bool	isCalorimeter ()
bool	isRich ()
bool	isTrack ()
bool	isCluster ()
bool	isMagnet ()
bool	isTarget ()
Selectable implementation
virtual bool	onHighlight (bool highlight)
virtual bool	onSelect (bool select)
virtual const std::string &	toolTip (osg::Node *)
Pickable implementation
Everything pickable except shadow
virtual bool	isPickable (osg::Node *node)
Public Member Functions inherited from TypedTransform
	TypedTransform (std::string className)
virtual bool	childrenAllowed ()
const std::string &	getClassName () const
int	getType () const
virtual bool	addChild (osg::Node *child)
virtual bool	insertChild (unsigned int index, osg::Node *child)
virtual bool	setChild (unsigned int index, osg::Node *child)
virtual bool	replaceChild (osg::Node *origChild, osg::Node *child)
virtual bool	removeChildren (unsigned int pos, unsigned int numChildrenToRemove)
Public Member Functions inherited from Selectable
	Selectable ()
virtual	~Selectable ()
Public Member Functions inherited from PickingHandler::Pickable
	Pickable ()
virtual	~Pickable ()

Protected Member Functions
osg::Geode *	createHighlightBox (osg::BoundingBox bbox)
osg::Node *	createWireframe (osg::Node *node)
osg::Node *	createShadow (osg::Node *)
void	createSimplifiedGeometry (osg::Vec4)
void	init (int type, const std::string &name)
	Setup uid, type and name (first call in constructor) More...
void	assemble ()
	Assemble switch node with geometry nodes (last call in constructor) More...
Protected Member Functions inherited from TypedTransform
void	updateType (int type=UNSPECIFIED)
Protected Member Functions inherited from Selectable
bool	isSelected () const
virtual void	onMouseOver (const osgGA::GUIEventAdapter *ea, osg::Node *)
virtual void	onMouseEnter (const osgGA::GUIEventAdapter *ea, osg::Node *)
virtual void	onMouseLeave (const osgGA::GUIEventAdapter *ea)
Protected Member Functions inherited from PickingHandler::Pickable
void	setToolTip (std::string text)
	This may be used for showing a tooltip. More...
void	setToolTipPosition (float x, float y, float z)

Additional Inherited Members
Static Public Member Functions inherited from Selectable
static bool	selectCurrent (bool select=true)
static bool	toggleCurrent ()
static void	resetCurrent ()
static Selectable *	getCurrent ()
Protected Attributes inherited from TypedTransform
int	m_type
std::string	m_className

Detailed Description

Graphical representation of Phast objects (e.g. PaDetector, PaTrack, ...) as OpenSceneGraph node.

Author

Max Hermann <mhermann[at]mail.cern.ch>

Member Enumeration Documentation

enum PhastNode::Type

Type of this PhastNode. Leaf nodes are exactly of one type which corresponds to the associated Phast class given in their constructor. PhastNode's of type GROUP have all their childrens types or'ed together.

Enumerator
GROUP
DETECTOR
CALORIMETER
RICH
TRACK
MAGNET
TARGET
CLUSTER

Constructor & Destructor Documentation

PhastNode::PhastNode

(

)

Constructor for a GROUP node.

PhastNode::PhastNode	(	const PaDetect &	det,
		osg::Vec4	color = osg::Vec4(1.f,1.f,1.f,1.f)
	)

Constructor for a DETECTOR node.

References OsgGeometry::createBox(), and OsgGeometry::createBoxWireframe().

PhastNode::PhastNode	(	const PaCalorimeter &	cal,
		osg::Vec4	color = osg::Vec4(1.f,1.f,1.f,1.f)
	)

Constructor for a CALORIMETER node.

References OsgGeometry::createBox(), OsgGeometry::createBoxArray(), and OsgGeometry::createBoxWireframe().

PhastNode::PhastNode	(	const PaRich &	rich,
		osg::Vec4	color = osg::Vec4(1.f,1.f,1.f,1.f)
	)

Constructor for a RICH node.

References OsgGeometry::createBox(), OsgGeometry::createBoxWireframe(), and GetBoundingBoxVisitor::getBoundingBox().

PhastNode::PhastNode	(	const PaTrack &	track,
		osg::Vec4	color = osg::Vec4(1.f,1.f,1.f,1.f)
	)

Constructor for a TRACK node.

References OsgGeometry::createLineStrip(), and OsgGeometry::setLineState().

PhastNode::PhastNode

(

const PaCaloClus &

cluster

)

Constructor for a CLUSTER node, a special node showing the energy deposit in a Calorimeter Cluster.

References OsgGeometry::createCross3D(), OsgGeometry::createQuad(), and QPhastInterface::getCalorimeter().

PhastNode::PhastNode	(	const Magnet &	magnet,
		osg::Vec4	color = osg::Vec4(1.f,1.f,1.f,1.f)
	)

Constructors for special nodes

References GetBoundingBoxVisitor::getBoundingBox(), PhastNode::Magnet::model, PhastNode::Magnet::name, PhastNode::Magnet::x, PhastNode::Magnet::y, and PhastNode::Magnet::z.

PhastNode::PhastNode	(	const Target &	target,
		osg::Vec4	color = osg::Vec4(1.f,1.f,1.f,1.f)
	)

Member Function Documentation

void PhastNode::assemble ( )

protected

Assemble switch node with geometry nodes (last call in constructor)

osg::Geode * PhastNode::createHighlightBox ( osg::BoundingBox  bbox )

protected

References OsgGeometry::createBoxWireframe().

osg::Node* PhastNode::createShadow ( osg::Node *  )

inlineprotected

Deprecated:

void PhastNode::createSimplifiedGeometry ( osg::Vec4  )

inlineprotected

Deprecated:

osg::Node * PhastNode::createWireframe ( osg::Node *  node )

protected

References OsgGeometry::setLineState().

std::string PhastNode::getName ( ) const

inline

Return name (matches Phast object's name if node corresponds to a Phast object)

Referenced by EventMultiViewer::requestView().

int PhastNode::getUID ( ) const

inline

Return unique PhastNode index (e.g. usefull for mapping a PhastNode to a QTreeWidget item)

Referenced by SetupTreeWidget::addGroup(), SelectionDispatcher::highlight(), and ParticleTreeWidget::updateContent().

void PhastNode::highlight

(

bool

highlighted

)

void PhastNode::init ( int  type, const std::string &  name  )

protected

Setup uid, type and name (first call in constructor)

bool PhastNode::isCalorimeter ( )

inline

References CALORIMETER, and TypedTransform::m_type.

Referenced by EventMultiViewer::requestView().

bool PhastNode::isCluster ( )

inline

References CLUSTER, and TypedTransform::m_type.

bool PhastNode::isDetector ( )

inline

References DETECTOR, and TypedTransform::m_type.

bool PhastNode::isEventEntity ( )

inline

References CLUSTER, TypedTransform::m_type, and TRACK.

Referenced by SelectionDispatcher::highlight().

bool PhastNode::isGroup ( )

inline

References GROUP, and TypedTransform::m_type.

Referenced by SelectionDispatcher::highlight(), and EventMultiViewer::requestView().

bool PhastNode::isMagnet ( )

inline

References TypedTransform::m_type, and MAGNET.

virtual bool PhastNode::isPickable ( osg::Node *  node )

inlinevirtual

Reimplemented from PickingHandler::Pickable.

bool PhastNode::isRich ( )

inline

References TypedTransform::m_type, and RICH.

bool PhastNode::isSetupEntity ( )

inline

Convenience getters for Type (Remember: A GROUP has the types of all its children!)

References CALORIMETER, DETECTOR, TypedTransform::m_type, MAGNET, RICH, and TARGET.

Referenced by SelectionDispatcher::highlight().

bool PhastNode::isTarget ( )

inline

References TypedTransform::m_type, and TARGET.

bool PhastNode::isTrack ( )

inline

References TypedTransform::m_type, and TRACK.

bool PhastNode::onHighlight ( bool  highlight )

virtual

Implements Selectable.

References SelectionDispatcher::highlight(), and SelectionDispatcher::ref().

bool PhastNode::onSelect ( bool  select )

virtual

Implements Selectable.

void PhastNode::setAlpha

(

float

alpha

)

Change alpha value of this node and all its children.

References ChangeColorVisitor::changeOnlyAlpha(), ChangeColorVisitor::setAlpha(), and setAlpha().

Referenced by SetupTreeWidget::changeSetupAlpha(), and setAlpha().

void PhastNode::setColor

(

osg::Vec3

color

)

Change color of this node and all its children.

References ChangeColorVisitor::getNumberOfChangedDrawables(), and setColor().

Referenced by setColor().

void PhastNode::setVisible

(

bool

visible

)

Change visibility of this node and its subtree.

References setVisible().

Referenced by setVisible(), and SetupTreeWidget::updateItem().

const std::string & PhastNode::toolTip ( osg::Node *  )

virtual

Reimplemented from Selectable.
