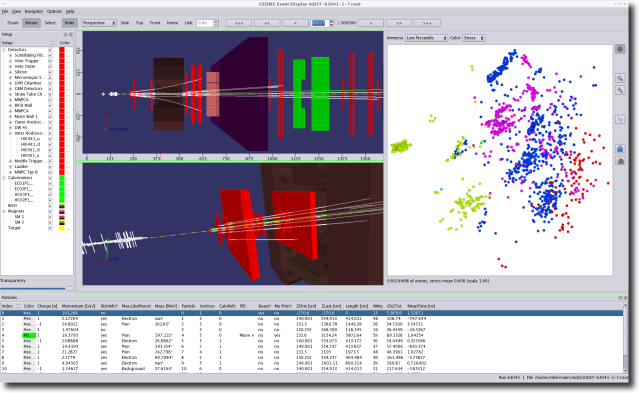

CEDRIC is an offline event display for the COMPASS experiment at Cern.
It provides event visualization based on mDST files
combined with a novel browsing technique for large event datasets called EventMap.
This software is a prototype and especially the EventMap browsing feature is experimental.
We, that is Boris Iven and Max Hermann, have developed this program as part of our master thesis ("Diplomarbeit") in computer science at the university of Bonn. If you have questions, problems or suggestions concerning CEDRIC please feel free to contact Max Hermann.
Note: This is an archived version of this webpage that is no longer officially maintained!
The rest of this page is organized as follows:
05th July 2009 |
Version update to revision r476M. Several bug-fixes. EventMap improvements. |
13th June 2008 |
Version update to revision r325. Fixed mass calculation issue. Made manual available in the program's help browser. Improved developer's reference documentation. |
9th April 2008 |
Updated user's manual and added list of known issues in section Documentation. |
1st April 2008 |
Stub version of user's manual available below. Downloads available for revision r229 Updated remote version to r229. |
13th March 2008 | Updated remote version to r200 which is much more stable. |
3th March 2008 | Made revision r169 remotely available on lxplus. Launch of this website. |
Note: This section is outdated, unfortunately the remote version is no longer available.
Currently you can test revision r325 of the program remotely on lxplus:
cd /afs/cern.ch/user/m/mhermann/public/EventDisplay ./start.sh
You can also pass a filename to the start.sh script:
./start.sh myFavourite_mDST.root
Note that it is no longer needed (nor possible) to pass options to the start.sh script. If the program doesn't start up, make sure your ssh session has X-forwarding activated. We know that the remote version is very slow and cumbersome. For "serious" use we recommend to download and install the source distribution.
Note: The original source code repository seems to be discontinued. Therefore a personal backup of the author's source code repository is made available here:
